Weblogic Admin Server and Managed Servers Startup & Shutdown Procedure:

After Weblogic Installation and Domain Creation, we have to start the Admin Server and Manage Servers using the following  steps:

First we start the Admin Server using following command lines.
[root@fa bin]# cd /root/MW_home/user_projects/domains/base_domain/bin/
[root@fa bin]# ls
nodemanager  nohup.out  server_migration  service_migration  setDomainEnv.sh
startManagedWebLogic.sh  startWebLogic.sh  stopManagedWebLogic.sh  stopWebLogic.sh
[root@fa bin]# nohup ./startWebLogic.sh &
[root@fa bin]# nohup: appending output to `nohup.out'
[root@fa bin]# tail -f nohup.out

Server state during the startup:
<Aug 7, 2013 11:07:18 AM IST> <Notice> <WebLogicServer> <BEA-000365> <Server state changed to STANDBY>
<Aug 7, 2013 11:07:18 AM IST> <Notice> <WebLogicServer> <BEA-000365> <Server state changed to STARTING>
<Aug 7, 2013 11:07:21 AM IST> <Notice> <WebLogicServer> <BEA-000365> <Server state changed to ADMIN>
<Aug 7, 2013 11:07:21 AM IST> <Notice> <WebLogicServer> <BEA-000365> <Server state changed to RESUMING>
<Aug 7, 2013 11:07:22 AM IST> <Notice> <WebLogicServer> <BEA-000365> <Server state changed to RUNNING>
<Aug 7, 2013 11:07:22 AM IST> <Notice> <WebLogicServer> <BEA-000360> <Server started in RUNNING mode>

Note 1:  If  we are running in Production mode we have to create boot.properties file in DOMAIN_HOME/servers/Adminserver/security  and in that directory we create the boot.properties file.
In that boot.properties file we put the weblogic username&password.
boot.properties file location:
(/root/MW_home/user_projects/domains/base_domain/servers/AdminServer/security/boot.properties)

Note 2: If we are running in Development  mode boot.properties file will be created at the time of Domain Creation.

Next we start the Manage server from Backend:.
[root@fa bin]# cd /root/MW_home/user_projects/domains/base_domain/bin/
[root@fa bin]# ls
nodemanager  nohup.out  server_migration  service_migration  setDomainEnv.sh
startManagedWebLogic.sh  startWebLogic.sh  stopManagedWebLogic.sh  stopWebLogic.sh
[root@fa bin]# nohup ./startManagedWebLogic.sh SOA http://fa.oracle.com:7001 &
[root@fa bin]# tail -f nohup.out

Server state during the startup:
<Aug 7, 2013 11:07:18 AM IST> <Notice> <WebLogicServer> <BEA-000365> <Server state changed to STANDBY>
<Aug 7, 2013 11:07:18 AM IST> <Notice> <WebLogicServer> <BEA-000365> <Server state changed to STARTING>
<Aug 7, 2013 11:07:21 AM IST> <Notice> <WebLogicServer> <BEA-000365> <Server state changed to ADMIN>
<Aug 7, 2013 11:07:21 AM IST> <Notice> <WebLogicServer> <BEA-000365> <Server state changed to RESUMING>
<Aug 7, 2013 11:07:22 AM IST> <Notice> <WebLogicServer> <BEA-000365> <Server state changed to RUNNING>
<Aug 7, 2013 11:07:22 AM IST> <Notice> <WebLogicServer> <BEA-000360> <Server started in RUNNING mode>

Note 1:  If  we are running in Production mode, we have to create boot.properties file in DOMAIN_HOME/servers/SOA/security  and in that directory we create the boot.properties file.
In that boot.properties file we put the weblogic username&password.
boot.properties file location:
(/root/MW_home/user_projects/domains/base_domain/servers/SOA/security/boot.properties)

Note 2: If we are running in Development  mode boot.properties file will be created at the time of Domain Creation.

We start the Managed servers from console:
we decided to start the managed servers from console, then we start Node manager using following commands:
 [root@fmw bin]# pwd
/root/MW_home/wlserver_10.3/server/bin
[root@fmw bin]# ls
international  nohup.out  setWLSEnv.sh  startNodeManager.sh

[root@fmw bin]# nohup ./startNodeManager.sh &
[root@fmw bin]# nohup: appending output to `nohup.out'
[root@fmw bin]# tail -f nohup.out

Nodemanager state during the startup:

Listener run INFO: Plain socket listener started on port 5556

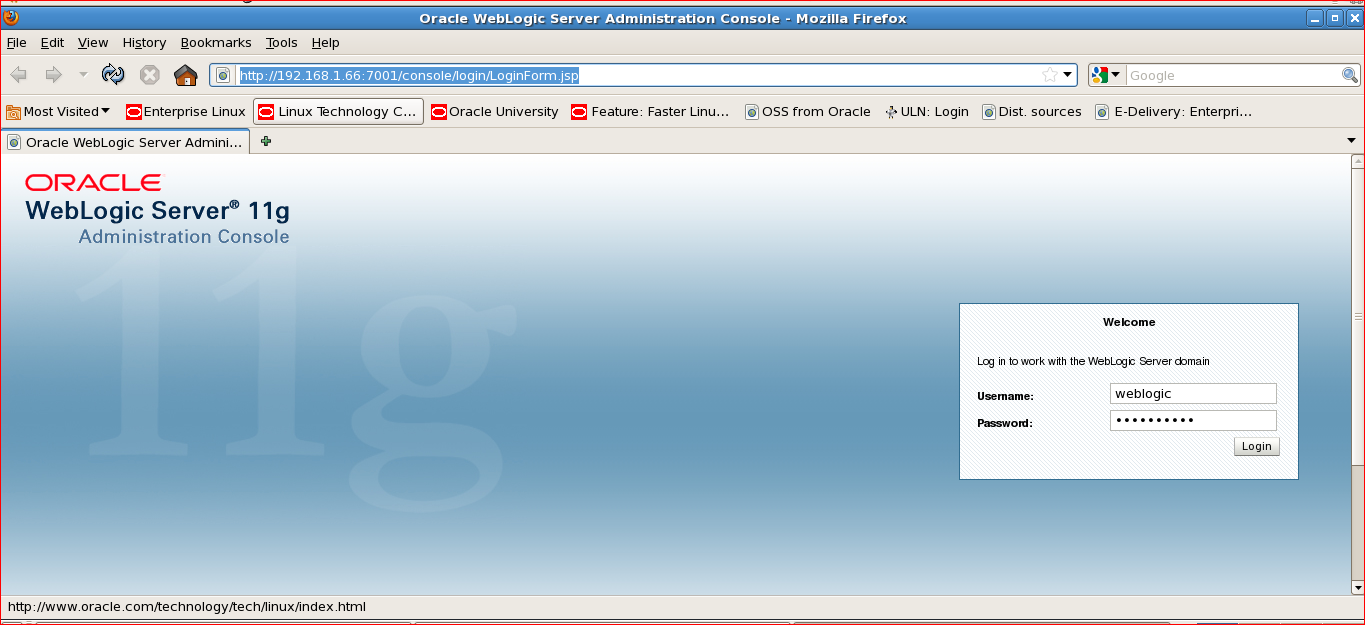

Next we open the browser and put the URL address in the browser.

http://192.168.1.66:7001/console/login/LoginForm.jsp

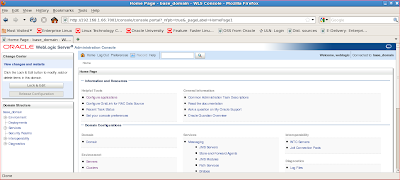

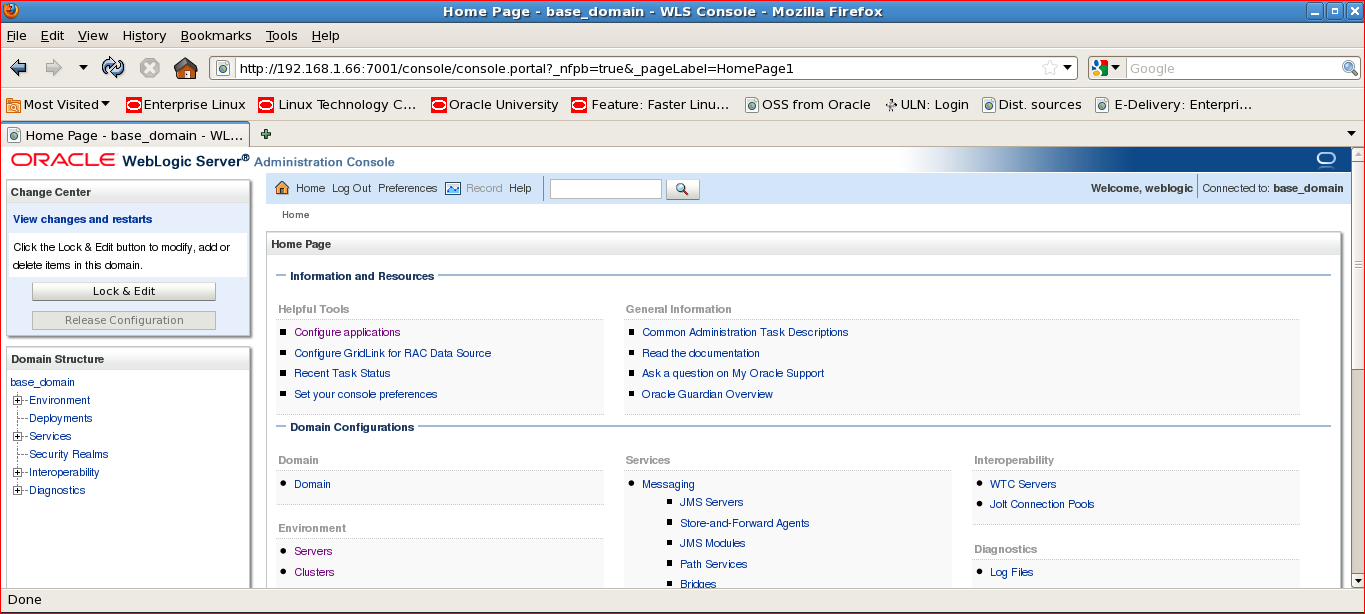

 After that, we submit the username and password the home page will be open like below

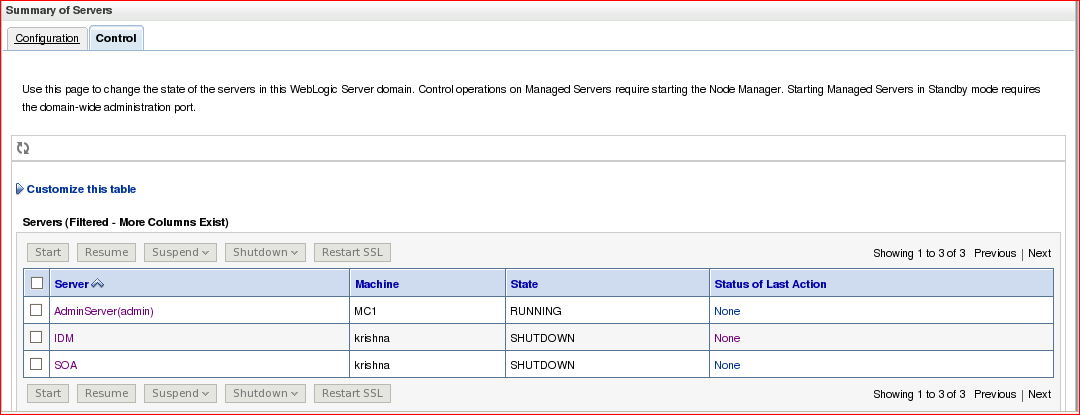

Next we click on servers and click on control:












Next we select the required managed servers to start and click on start option in the console:

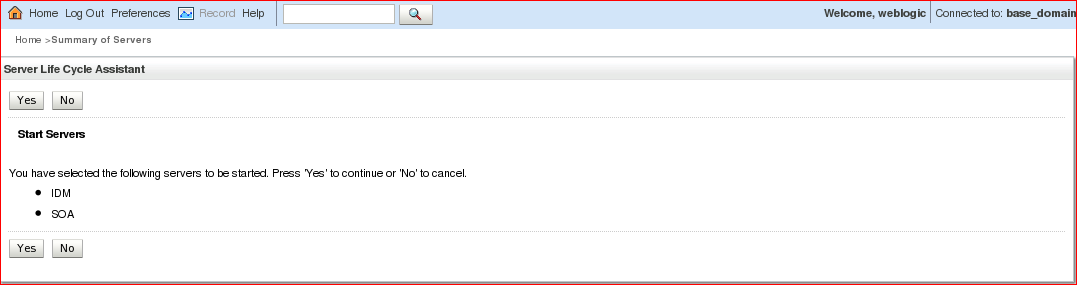

Next click on YES










Next click on refresh button for auto refresh













Finally Managed servers starts successfully:

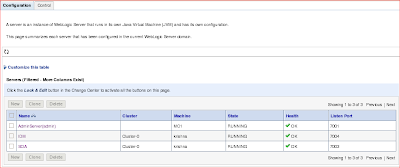

All the Servers have Running state and health is ok, Summary of Servers table from console













Shutdown Managed Servers from Console:
We need to stop the Managed servers just click on servers>control and choose the required Managed servers and click on Shutdown Force.












Next we click on YES











And click on Refresh option, then servers is shutdown successfully

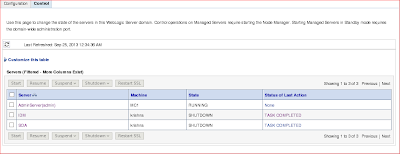

Summary of Servers Table from Console














Shutdown the Managed Servers from Backend:
[root@fmw bin]# pwd
/root/MW_home/user_projects/domains/base_domain/bin
[root@fmw bin]# ls
nodemanager       service_migration        startWebLogic.sh
nohup.out         setDomainEnv.sh          stopManagedWebLogic.sh
server_migration  startManagedWebLogic.sh  stopWebLogic.sh

[root@fmw bin]# nohup ./stopManagedWebLogic.sh SOA IDM &

[root@fmw bin]# tail -f nohup.out

Shutdown Admin Server:
[root@fmw bin]# cd /root/MW_home/user_projects/domains/base_domain/bin/
[root@fmw bin]# pwd
/root/MW_home/user_projects/domains/base_domain/bin
[root@fmw bin]# ls
nodemanager       service_migration        startWebLogic.sh
nohup.out         setDomainEnv.sh          stopManagedWebLogic.sh
server_migration  startManagedWebLogic.sh  stopWebLogic.sh
[root@fmw bin]# nohup ./stopWebLogic.sh &
[root@fmw bin]# tail -f nohup.out
<Sep 25, 2013 12:29:38 AM IST> <Warning> <Socket> <BEA-000450> <Socket 0 internal data record unavailable (probable closure due idle timeout), event received 17>

Server state during the shutdown:
<Sep 25, 2013 12:43:02 AM IST> <Alert> <WebLogicServer> <BEA-000396> <Server shutdown has been requested by weblogic>

<Sep 25, 2013 12:43:02 AM IST> <Notice> <WebLogicServer> <BEA-000365> <Server state changed to SUSPENDING>

<Sep 25, 2013 12:43:03 AM IST> <Notice> <WebLogicServer> <BEA-000365> <Server state changed to ADMIN>

<Sep 25, 2013 12:43:03 AM IST> <Notice> <WebLogicServer> <BEA-000365> <Server state changed to SHUTTING_DOWN>

<Sep 25, 2013 12:43:03 AM IST> <Notice> <Server> <BEA-002607> <Channel "Default" listening on 192.168.1.66:7001 was shutdown.>

<Sep 25, 2013 12:43:03 AM IST> <Notice> <Server> <BEA-002607> <Channel "DefaultSecure" listening on 192.168.1.66:7002 was shutdown.>

Disconnected from weblogic server: AdminServer

Exiting WebLogic Scripting Tool.

Done

Stopping Derby Server...



Now, We Successfully Completed the Startup & Shutdown the Weblogic Admin server and Managed servers.



For Fusion Middleware online training please contact us at the following url:

Weblogic Domain Creation:

We create domain by using config.sh script, please follow the below screen shorts.







We select create a new weblogic domain and click on Next:


Click on Next:


















Please choose the domain name and location:



















Administrator Username and Password:



















Please choose the Production Mode/Development Mode:
Default JDK for development domain is Sun jdk & production domain is JRocket:


















Select the configuration options and click on Next:



















Configure the Admin server, Please choose the Name,Listen address,Listen port and
SSL Listen port:


















Configure the Managed servers, If the Admin server and Managed server are in same
machine then the Listen address is same. If the Admin server and Managed server are
in different machines then the Listen address is different:

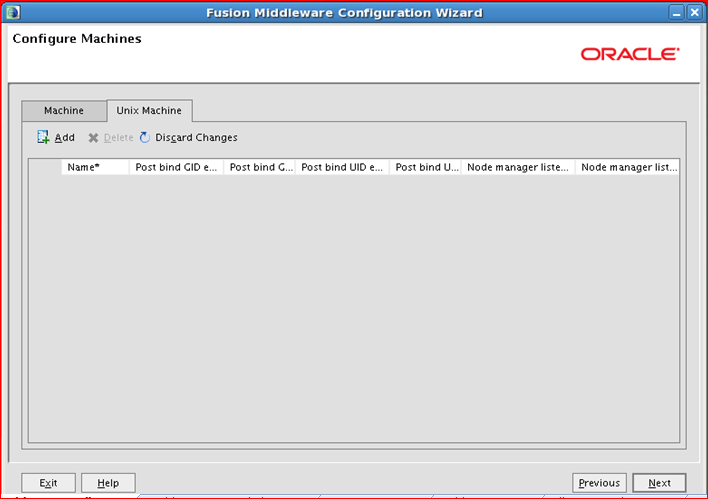

Click on Next:



Click on Next:

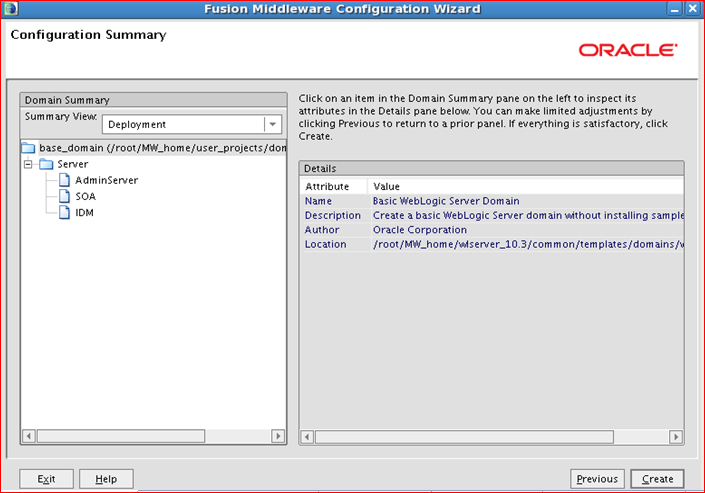

Select Create option:


















Next Click on Done




















Now domain creation is completed successfully, now in our machine we have one admin server
and two managed servers(SOA,IDM), SOA&IDM are just managed server names.
You requires SOA then you need to install SOA using the following link:

http://krishnasudagani.blogspot.in/2013/09/oracle-soa-11g-installation-on-weblogic.html

Next Topic is Startup & Shutdown of Weblogic Admin & Managed servers follow the
below url:



For Fusion Middleware online training please contact us at the following url:

Weblogic 10.3.5.0 Installation steps:

Assumptions:
This article assumes you have an existing server (real or virtual) with Oracle Linux 5.x. installed on it. Here i did the basic Installation of Oracle Linus 5.7 with no extra package groups for this installation. Everything in the installation will be 64-bit.
Software:
Download Weblogic Server software from following links :
The following actions should be performed by the “root” user.
Make sure the “/etc/hosts” file contains correct entries for both the “localhost” and real host names.
192.168.1.66 fmw.oracle.com fmw

127.0.0.1 local host localhost.localdomain localhost4 localhost4.localdomain4
Step 1:

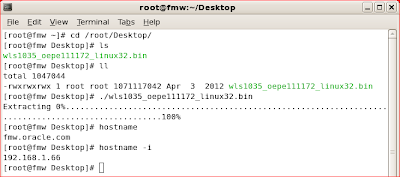

We need to copy the Weblogic software to Linux Desktop, after that we need to change the permission of Weblogic software.







Step 2:
Click on Next














Step 3:
Create the Middleware home directory and assign the path in MW_HOME directory














Step 4:
Click on Next














Step 5:
Select custom and click on next














Step 6:
Click on Next














Step 7:
We need to select any one of the following JDK.
Default JDK for development domain is Sun jdk & production domain is JRocket.














Step 8:
Click on Next














Step 9:
Click on Next

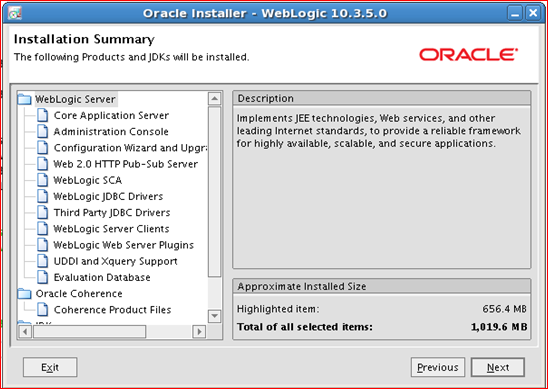

Step 10:














Step 11:
Disable Run Quickstart and click on done.
